AU fill scale

scale_fill_au.Rd

Enables the customization of the fill aesthetic using pre-defined or custom AU color palettes.

Usage

scale_fill_au(
  style = "light",
  reverse = FALSE,
  discrete = FALSE,
  colors = NA,
  na.value = au_colors("grey"),
  ...
)

Arguments

style

String, color palette style. Could be light, dark, hotandcold, hotandcold_dark, or custom. Default palette is light.

reverse

Boolean, TRUE reverses the color order.

discrete

Boolean, TRUE applies a discrete color scale, FALSE applies a continuous color scale. Default is FALSE.

colors

Vector of AU color names. Only used when style = "custom" is passed in.

na.value

String or named vector, the color to use for NA values. Default is au_colors("grey"), corresponding to #878787.

...

Arguments passed on to scale_fill_manual or scale_fill_gradientn.

Value

A ggproto ScaleContinuous or ScaleDiscrete object.

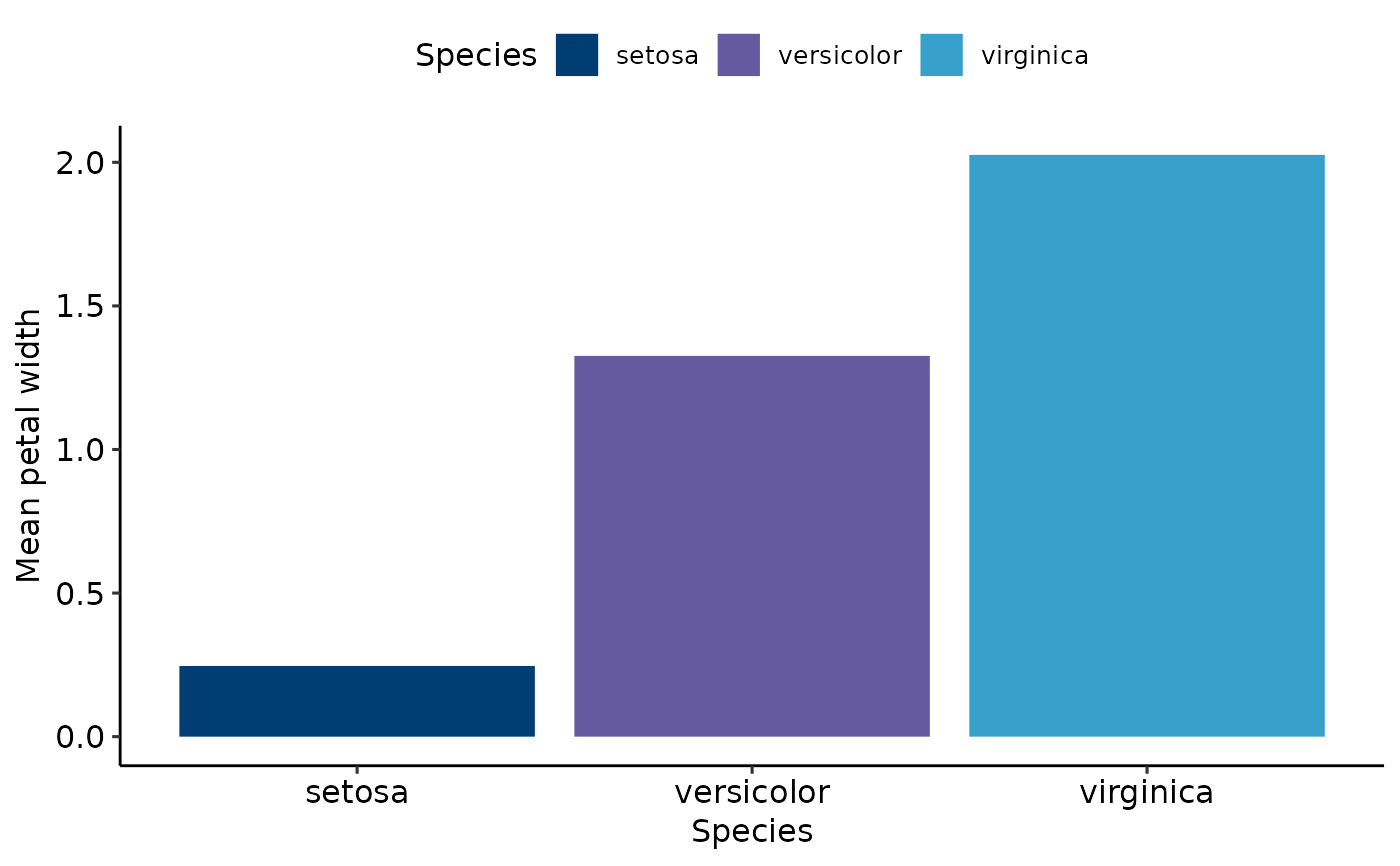

Examples

iris_df = dplyr::summarize(dplyr::group_by(iris, Species),
`Mean petal width` = mean(Petal.Width))

ggplot2::ggplot(iris_df, ggplot2::aes(x = Species,
y = `Mean petal width`, fill = Species)) +
ggplot2::geom_bar(stat = "identity") +
ggpubr::theme_pubr() +
scale_fill_au(discrete = TRUE, style = "light")
